Outputs¶
MAT Files¶
All variables except jitters from Jitter Correction are m x n x p cell matrices, where variable_name{i,j,k} stores the information of the movie captured in Row i, Column j, and Site k of a multi-well plate.
For movies not captured on a multi-well plate, this information is stored in variable_name{1,1,1}.
For clarity, only movie-specific information (variable_name{i,j,k}) will be described on this page. Data structure of variable_name{i,j,k} is shown after “|”.
For example, (m x n x p cell matrix | n x 1 cell array) indicates that variable_name{i,j,k} is an n x 1 cell array.
Segmentation (segmentation.mat)¶
all_ellipse_info (m x n x p cell matrix | n x 1 cell array) — Information of the fitted ellipses.
Each row of
all_ellipse_info{i,j,k}is a MATLAB structure storing the information of one frame.>> all_ellipse_info{2,1,1}{50} % Row 2, Column 1, Site 1, Frame 50 ans = struct with fields: all_cartesian_para: {196×1 cell} all_parametric_para: {196×1 cell} all_boundary_points: {196×1 cell} all_internal_points: {196×1 cell} all_features: {196×1 cell}
All fields are n x 1 cell arrays, where each element stores the information of one ellipse.
>> all_ellipse_info{2,1,1}{50}.all_parametric_para{100} % Row 2, Column 1, Site 1, Frame 50, Parametric Equation, Ellipse 100 ans = 1.0e+03 * 0.0118 0.0080 1.0774 0.7053 0.0004
Information for each ellipse
all_cartesian_para (nx1 cell array | 6x1 double array) — Fitted coefficients of the general ellipse equation
This array (denoted as \(a\)) satisfies \(a_1 x^2 + a_2 xy + a_3 y^2 + a_4 x + a_5 y + a_6 = 0\).
all_parametric_para (nx1 cell array | 5x1 double array) — Fitted coefficients of the parametric ellipse equation.
This array (denoted as \(a\)) satisfies \((x-a_3)^2/a_1^2 + (y-a_4)^2/a_2^2 = 1\). \(a_5\) is the rotation angle.
all_boundary_points (nx1 cell array | 100x2 double matrix) — Coordinates of the points on the ellipse contour.
Each row stores the coordinates of one point.
all_internal_points (nx1 cell array | mx2 integer matrix) — Coordinates of the pixels in the ellipse interior.
Each row stores the coordinates of one pixel.
all_features (nx1 cell array | 26x1 double array) — Features of the ellipse.
Each element stores the value of one feature.
all_num_ellipses (m x n x p cell matrix | n x 1 integer array) — Number of ellipses in each frame.
Each row
all_num_ellipses{i,j,k}stores the number of ellipses in one frame.>> all_num_ellipses{2,1,1}(1:5) % Row 2, Column 1, Site 1, Frame 1-5 ans = 153 153 155 158 157
Jitter Correction (jitter_correction.mat)¶
accumulated_jitters (m x n x p x 2 integer matrix) — Jitter values.
For the movie captured in Row i and Column j, the jitters between Frame 1 and Frame t are stored in
accumulated_jitters(i,j,t,:).>> squeeze(accumulated_jitters(2,1,50,:)) % Row 2, Column 1, Between Frame 1 and Frame 50. No jitters. ans = 0 0
EllipTrack assumes that movies captured in different imaging sites of the same well have the same jitter values. Jitters calculated from these movies will be averaged.
Prediction of Events (probabilities.mat)¶
all_morphology_prob (m x n x p cell matrix | n x 1 cell array) — Probabilities of morphological events.
Each row of
all_morphology_prob{i,j,k}stores the probabilities of one frame. For every frame, the probabilities are organized into an nx2 double matrix, where each row refers to one cell and each column refers to one event. Events are organized in the following order: No Cells, One Cell, Two Cells, Mitotic (Before M), Newly Born (After M), and Apoptosis.>> all_morphology_prob{2,1,1}{50}(1:5, :) % Row 1, Column 1, Site 1, Frame 50, Ellipse 1-5 ans = 0.0000 1.0000 0.0000 0.5000 0.0031 0.0001 0.0000 1.0000 0.0000 0.5000 0.0003 0.0001 0.0000 1.0000 0.0000 0.5000 0.0003 0.0001 0.0000 1.0000 0.0000 0.5000 0.1952 0.0001 0.0000 1.0000 0.0000 0.5000 0.0000 0.0001 % 0 Cell 1 Cell 2 Cells Before M After M Apoptosis
all_migration_sigma (m x n x p cell matrix | n x 1 cell array) — Migration speeds.
Each row of
all_migration_sigma{i,j,k}stores the migration speeds of all ellipses in one frame. For each frame, the migration speeds are organized into an nx1 double array, where each row refers to one ellipse.>> all_migration_sigma{2,1,1}{50}(1:5) % Row 2, Column 1, Site 1, Frame 50, Ellipse 1-5 ans = 18.9891 18.0409 17.0909 17.3621 17.0909
all_prob_migration (m x n x p cell matrix | n x 1 cell array) — Migration probabilities.
Denote \(D_{m,s}\) and \(D_{n,t}\) as the m-th ellipse in Frame s and n-th ellipse in Frame t (s<t), respectively. The migration probability from \(D_{m,s}\) to \(D_{n,t}\) is stored in
all_prob_migration{i,j,k}{t}{n, t-s}(m).>> all_prob_migration{2,1,1}{50}{20, 1}(19) % Row 2, Column 1, Site 1, D_{19, 49} -> D_{20, 50} ans = 0.5186
all_prob_inout_frame (m x n x p cell matrix | n x 1 cell array) — Probabilities of cells migrating in/out of the field of view.
Each row of
all_prob_inout_frame{i,j,k}stores the probabilities of all ellipses in one frame. For each frame, the probabilities are organized into an nx1 double array, where each row refers to one ellipse.>> all_prob_inout_frame{2,1,1}{50}(1:5) % Row 2, Column 1, Site 1, Frame 50, Ellipse 1-5 ans = 0.0411 0.0001 0.0001 0.0001 0.0001
all_motion_classifiers (m x n x p cell matrix) — Classifiers for ellipse similarity.
A Linear Discriminant Analysis (LDA) classifier is constructed for each movie to predict whether two ellipses represent the same cell.
Track Linking (tracks.mat)¶
all_tracks (m x n x p cell matrix | n x 1 cell array) — Information of cell tracks.
Each row of
all_tracks{i,j,k}is a MATLAB structure storing the information of one cell track.>> all_tracks{2,1,1}{50} % Row 2, Column 1, Site 1, Track 50 ans = struct with fields: current_id: [288×1 double] gap_to_previous_id: [288×1 double] gap_to_next_id: [288×1 double] if_apoptosis: [288×1 double] daughters: {288×1 cell}
All fields are nx1 arrays, where each element stores the information of one frame.
>> all_tracks{2,1,1}{50}.current_id(1:5) % Row 2, Column 1, Site 1, Frame 50, Ellipse ID, Frame 1-5 ans = 50 49 49 48 47
Field (Data Structure) Description Track Absence current_id
(nx1 integer array)
Ellipse ID at this frame. NaN gap_to_previous_id
(nx1 integer array)
Gap (in frames) between the current ellipse
and the previous ellipse of the cell track
NaN gap_to_next_id
(nx1 integer array)
Gap (in frames) between the current ellipse
and the next ellipse of the cell track
NaN if_apoptosis
(nx1 binary array)
Whether cells undergo apoptosis
at this frame
0 daughters
(nx1 cell array)
Daughter Track IDs.
Empty if cells are not mitotic.
Empty The column “Track Absence” indicates the value if a cell track is not present at this frame.
Signal Extraction (signals.mat)¶
all_signals (m x n x p cell matrix | n x 1 cell array) — Signals of cell tracks.
Each row of
all_signals{i,j,k}is a MATLAB structure storing the signals of one cell track.>> all_signals{2,1,1}{50} % Row 2, Column 1, Site 1, Track 50 ans = struct with fields: ellipse_id: [288×1 double] num_tracks_at_ellipse: [288×1 double] daughters: {288×1 cell} nuc_center_x: [288×1 double] nuc_center_y: [288×1 double] nuc_first_axis: [288×1 double] nuc_second_axis: [288×1 double] nuc_area: [288×1 double] nuc_angle: [288×1 double] H2B_nuc_mean: [288×1 double] H2B_nuc_percentile: [288×1 double] H2B_nuc_variance: [288×1 double] CDK2_nuc_mean: [288×1 double] CDK2_nuc_percentile: [288×1 double] CDK2_nuc_variance: [288×1 double] CDK2_cytoring_mean: [288×1 double] CDK2_cytoring_percentile: [288×1 double] CDK2_cytoring_variance: [288×1 double] intensity_percentile: 75
Most fields are nx1 arrays, where each element stores the information of one frame. The field intensity_percentile is an mx1 double array, where each element stores a percentile to measure. The fields XXX_XXX_percentile are nxm double matrices, where each row refers to one frame and each column refers to one percentile specified by intensity_percentile.
>> all_signals{2,1,1}{50}.ellipse_id(1:5) % Row 2, Column 1, Site 1, Frame 50, Ellipse ID, Frame 1-5 ans = 50 49 49 48 47 % same as all_tracks{2,1,1}{50}.current_id(1:5)
Field (Data Structure) Description Track Absence ellipse_id
(nx1 integer array)
Ellipse ID at this frame. NaN num_tracks_at_ellipse
(nx1 integer array)
Number of cell tracks mapping to
this ellipse, including this track
NaN daughters
(nx1 cell array)
Daughter Track IDs.
Empty if cells are not mitotic.
Empty nuc_center_x, nuc_center_y
(nx1 double array)
Position of the ellipse centroid. NaN nuc_first_axis, nuc_second_axis
(nx1 double array)
Axis lengths of the fitted ellipse. NaN nuc_area
(nx1 double array)
Area of the fitted ellipse. NaN nuc_angle
(nx1 double array)
Rotation angle of the fitted ellipse. NaN XXX_XXX_mean
(nx1 double array)
Mean pixel intensity in
the region of interest.
NaN XXX_XXX_percentile
(nxm double matrix)
Percentiles of the pixel intensities
in the region of interest.
NaN XXX_XXX_variance
(nx1 double array)
Variance of the pixel intensities
in the region of interest.
NaN The column “Track Absence” indicates the value if a cell track is not present at this frame.
Optional Outputs¶
Mask, Ellipse Movies, and Vistrack Movies¶
| Output | Description | Example |
|---|---|---|
| Mask | Binarized images of the nuclear channel, before ellipse fitting. |
|

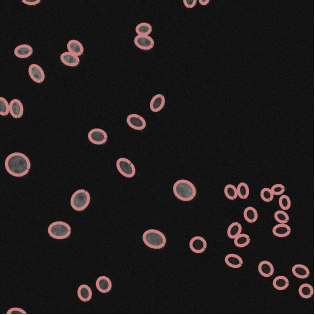

| Ellipse Movie | Autoscaled images of the nuclear channel, overlaid by the fitted ellipses. |
|

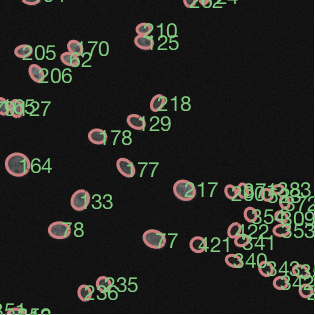

| Vistrack Movie | Ellipse Movie, with the Cell Track IDs plotted next to their respective ellipses.
|
|
Masks and Ellipse Movies can be used to evaluate the accuracy of segmentation before and after ellipse fitting, respectively. Vistrack Movies can be used to evaluate the accuracy of tracking linking.
All the output images from one movie will be stored in the same folder (RowID_ColumnID_SiteID). Each image will follow the naming convention RowID_ColumnID_SiteID_Channel_FrameID.tif. For example, the output image for Frame 4 of the movie captured in Row 2, Column 1, and Site 1 will be stored in the folder 2_1_1 and named 2_1_1_CFP_4.tif (assuming that the nuclear channel is CFP).
Segmentation Info¶
MAT files storing the information of the fitted ellipses in one frame. Required for constructing training datasets. Optional otherwise.
All the output files from one movie will be stored in the same folder (RowID_ColumnID_SiteID). Each image will follow the naming convention RowID_ColumnID_SiteID_Channel_FrameID_segmentation.mat. For example, the output file for Frame 4 of the movie captured in Row 2, Column 1, and Site 1 will be stored in the folder 2_1_1 and named 2_1_1_CFP_4_segmentation.mat (assuming that the nuclear channel is CFP).
